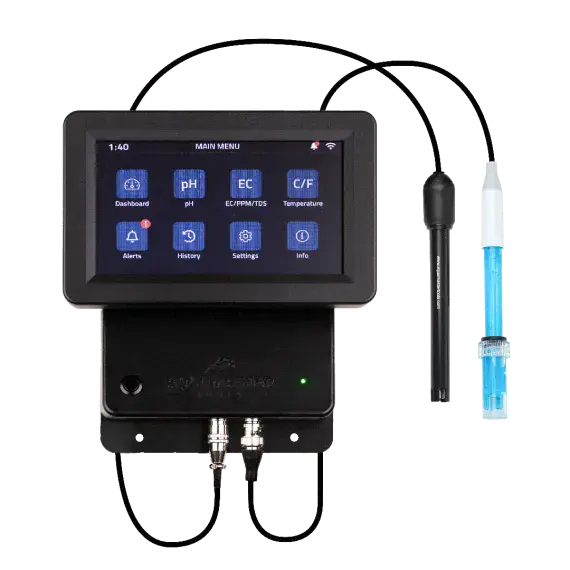

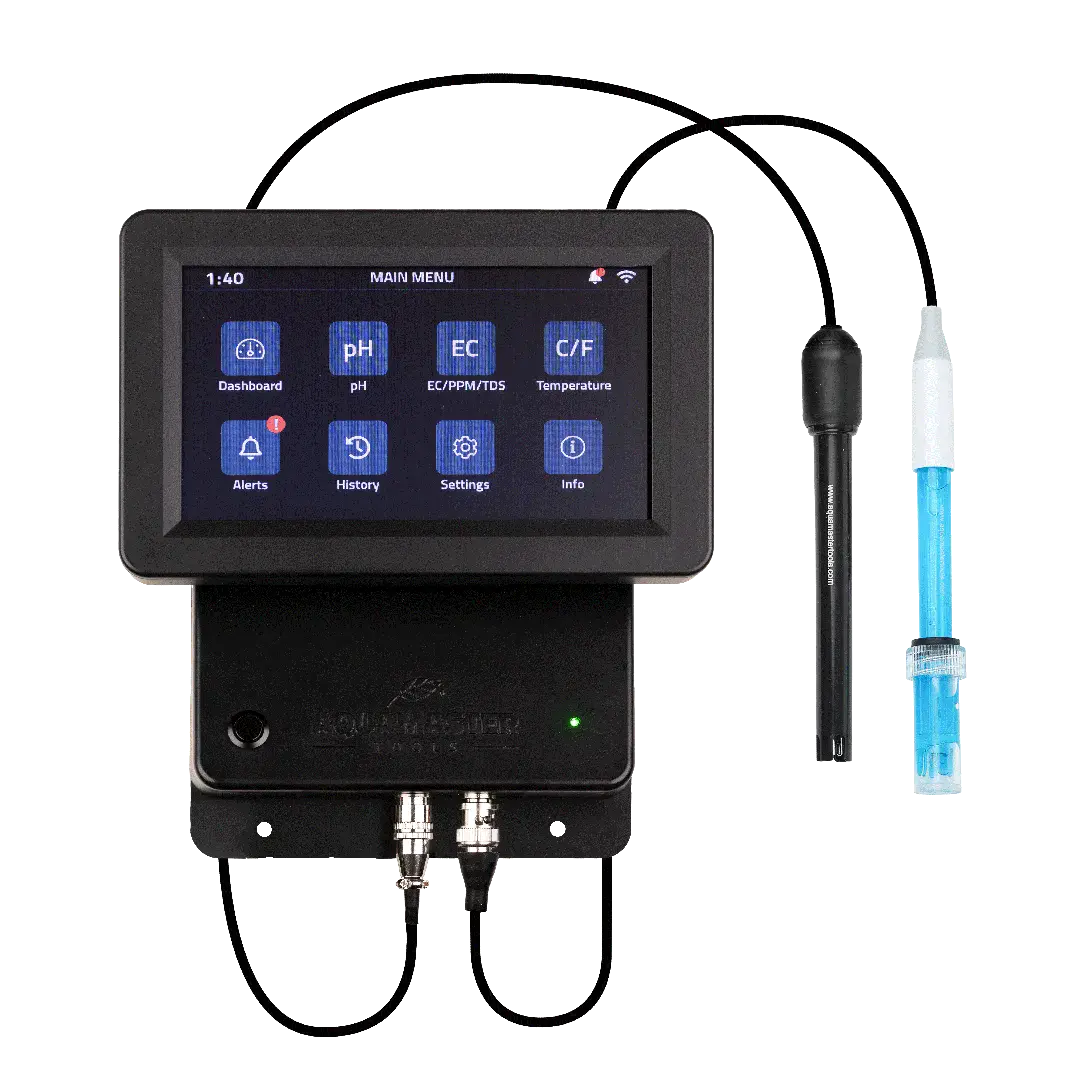

Aqua Master C800 Pro Touch screen Ph EC Monitor & Doser
Aqua Master Tools C800 Pro
The Aqua Master Tools C800 Pro is an advanced irrigation controller designed for precision water quality and nutrient management in hydroponic and irrigation systems. Specifically developed for horticulture and professional cultivation, the C800 Pro continuously measures pH, electrical conductivity (EC), total dissolved solids (TDS), parts per million (PPM) and temperature. Providing real-time insight into your nutrient solution.
This intelligent controller automatically doses corrective solutions via connected dosing pumps when values deviate from set targets. Helping maintain stable growing conditions without constant manual adjustment. Two dedicated UTP ports allow connection of a pH dosing pump and up to five EC dosing pumps, offering modular flexibility to match your system’s complexity.
A colour touchscreen provides live parameter displays, alarm status and historical data. For remote control, the free Aqua Master Tools app (iOS/Android) lets you adjust set points, view up to 12 months of records, receive alerts on your smartphone and manage multiple controllers from one place.
Key features
Continuous measurement of pH, EC, PPM, TDS & temperature
Automatic dosing control via modular pump connections
Intuitive colour touchscreen interface
Remote monitoring and adjustment via mobile app
Modular configuration: pH only, EC only, or combined control
In the box
C800 Pro controller, pH electrode, EC electrode (with built-in temperature sensor), power adapter and user manual.
Note: Dosing pumps are sold separately.

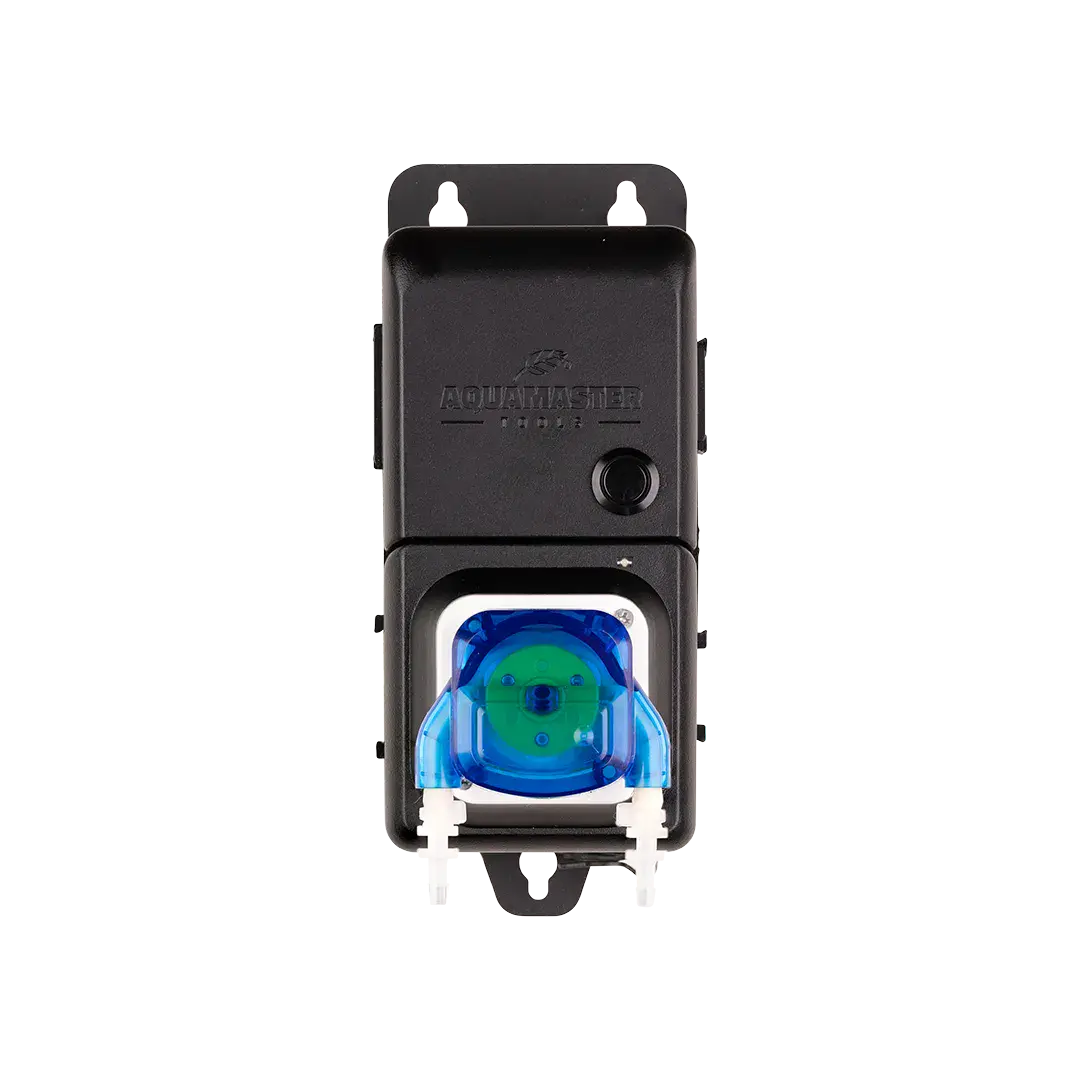

Aqua Master C10 Pump
The Aqua Master Tools C10 is a compact peristaltic dosing pump with one channel, designed for accurate dosing of either a single nutrient line (EC) or pH adjustment in automated hydroponic and irrigation systems.
With a dosing rate of approximately 1.5 ml per second, the C10 delivers consistent and controlled fluid dosing. It connects via a UTP port to controllers like the C800 Pro and will be recognised as either the pH pump or the first nutrient pump, depending on the controller setting.
Mechanical slide-rail design and a manual priming button make installation, setup and maintenance straightforward. Up to five EC pumps and one pH pump can be connected to a single controller when multiple dosing units are used.
Key benefits
Precise dosing for pH or EC nutrient solutions
Compact, modular design
Manual priming button for easy setup
Compatible with Aqua Master Tools controllers
Aqua Master Tools C20 Pump Unit
The Aqua Master Tools C20 is a dual-channel peristaltic dosing unit designed specifically for accurate nutrient (EC) dosing.
Each pump delivers dosing at around 1.5 ml per second, providing flexibility for systems that require two different nutrient feeds. Connect the C20 directly to the controller’s nutrient port or use it as an expansion unit with a C30 pump set for up to five nutrient lines in total.
Features include independent priming buttons for each pump and modular slide-rail design for mechanical linking with other dosing units such as the C10 or C30. A maximum of five EC pumps (plus one pH pump) can be managed by a single controller.
Key benefits
Two independent peristaltic pumps for nutrient dosing
Fast, accurate and modular dosing
Manual priming for easier commissioning and maintenance

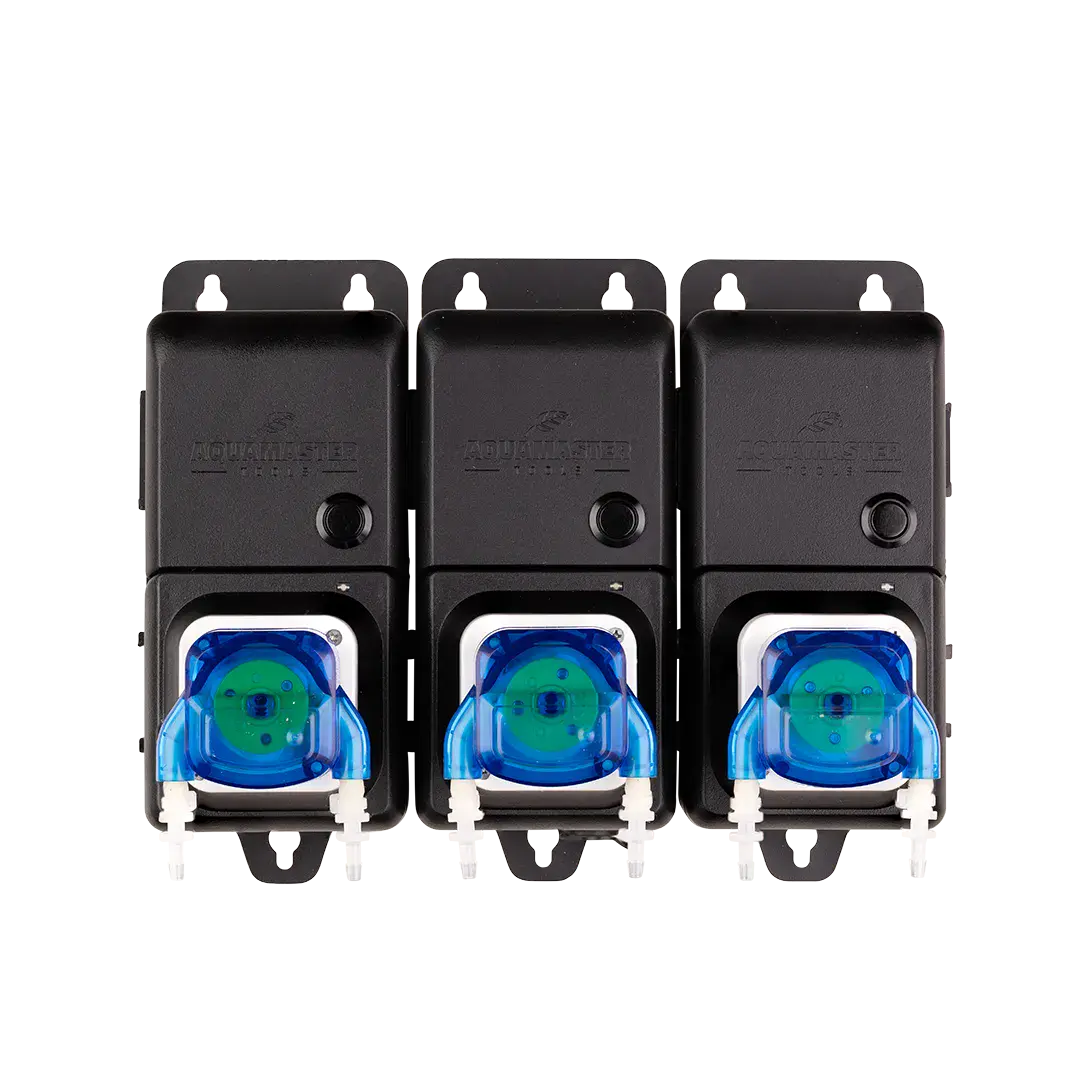

Aqua Master C30 Pump
Aqua Master Tools C30 Pump Unit
The Aqua Master Tools C30 is a triple-channel peristaltic dosing unit engineered for precise dosing of multiple nutrient solutions (EC).
Each pump delivers a standard 1.5 ml per second output, making this unit ideal for larger or more complex nutrient dosing configurations requiring three separate lines. The C30 connects directly to the controller and can be expanded with C10 or C20 modules to increase total nutrient dosing channels.
The slide-rail mechanical design and included UTP cables ensure secure connection and system communication. Manual priming buttons on each pump help during setup and hose maintenance. Up to five EC pumps plus one pH pump can be managed by a compatible controller.
Key benefits
Three independent nutrient dosing pumps
Modular expandability with other dosing units
Precise, uniform nutrient control
